Post-Configuration and Automatic Network Check

After completing the configuration process, the device will automatically reboot. Upon startup, the Mago Essential software will launch automatically.

If the device does not detect a network connection, it will display a QR code on screen. Scanning this QR code with a phone or laptop will allow you to quickly set up a Wi-Fi connection to restore network access.

1

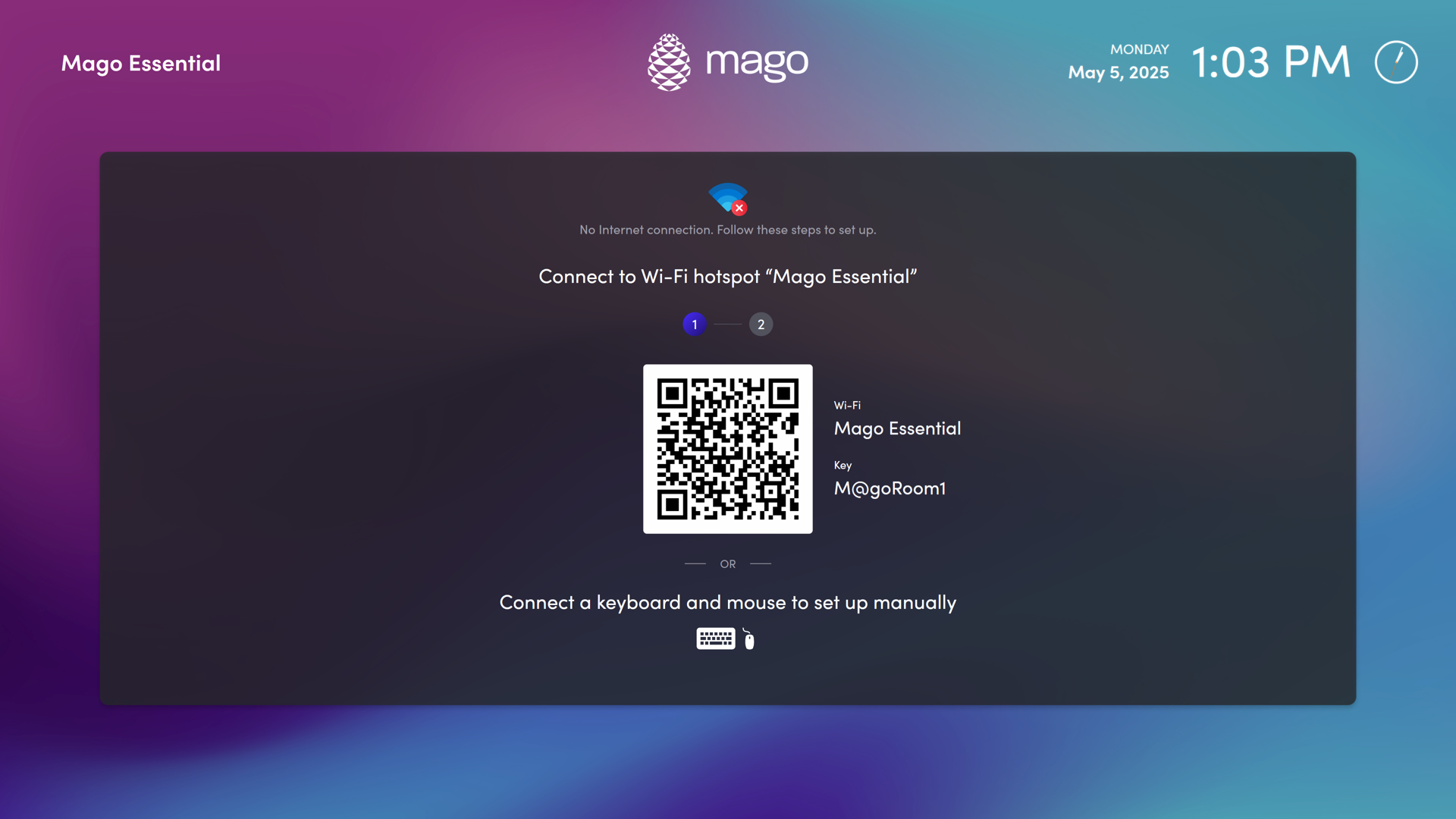

Connect to the WiFi hotspot

Scan the QR code, or manually connect to the WiFi hotspot using the WiFi SSID and Password displayed on the screen.

Mago Essential up to version 6.x

Mago Essential from version 7.x

2

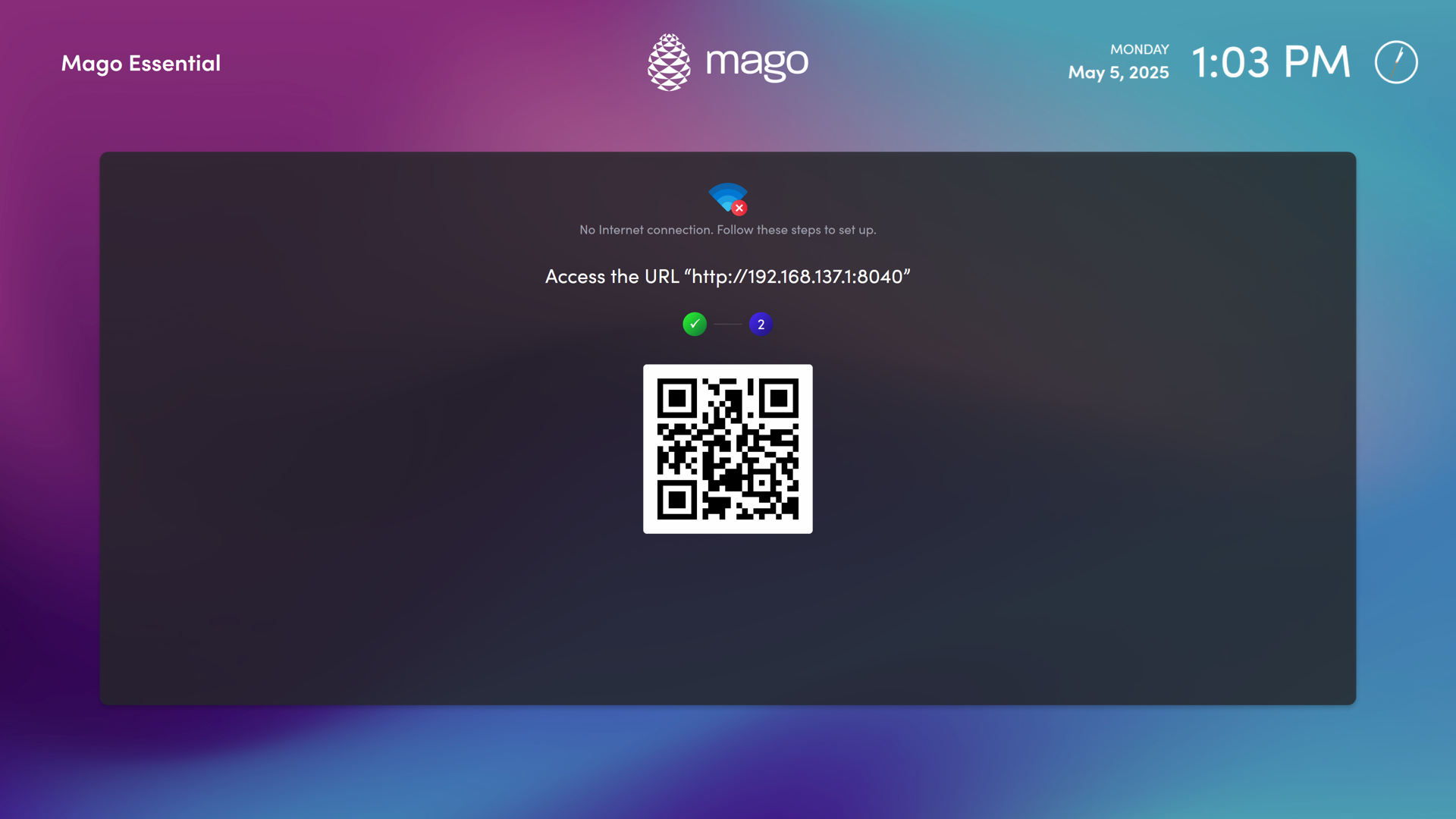

Access the configuration URL

Scan the second QR code, or manually browse the URL displayed on the screen.

Mago Essential up to version 6.x

Mago Essential from version 7.x

3

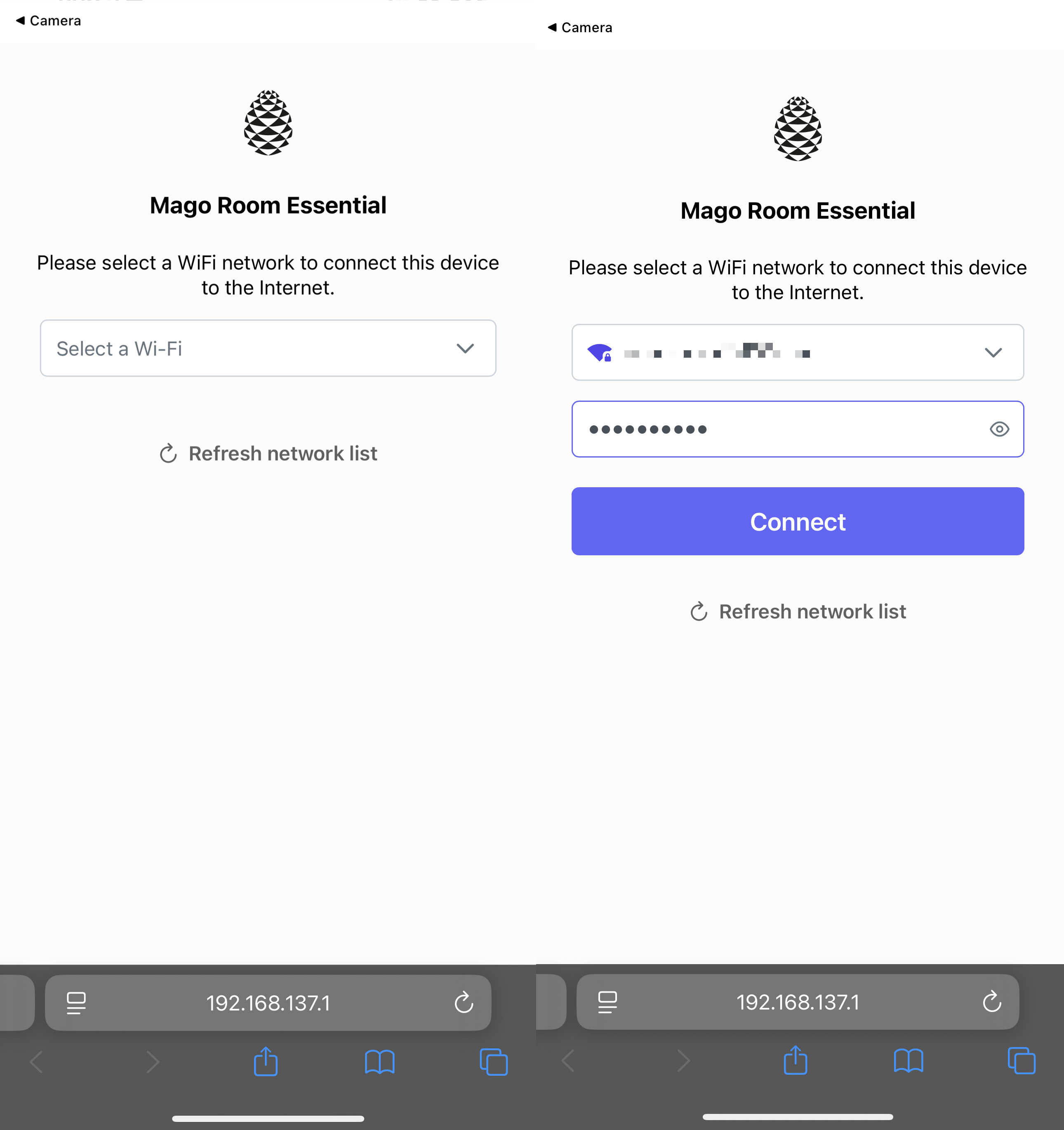

Select a WiFi network

On your phone or laptop, wait for the list of available Wi-Fi networks to appear. Select your desired Wi-Fi network and enter the password, if required. Then tap or click “Connect”. Mago Essential will attempt to connect to the selected network. Once connected successfully, the Wi-Fi setup prompt will disappear, and Mago Essential will resume normal operation.
